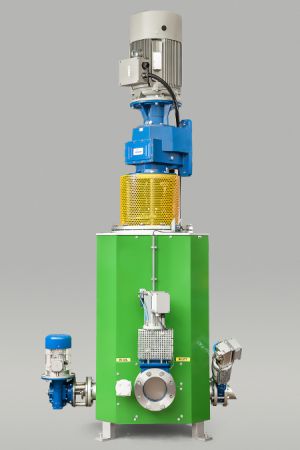

Homogenising/Filtering/refining machinery for bitumen and bitumen compound base.
It makes the compound smooth and shiny and destroys all the impurities inside.

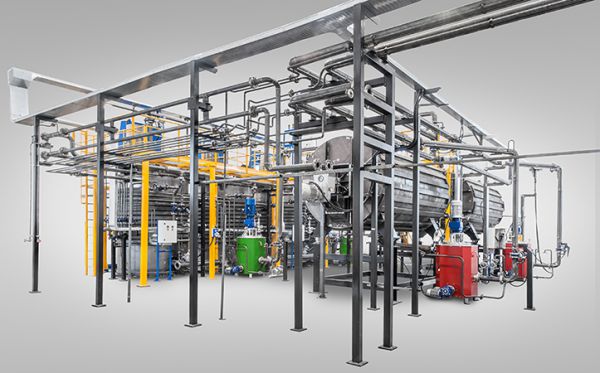

Usually installed between the primary/preparation mixer and the secondary/holding mixer.
Possible vertical or horizontal version.

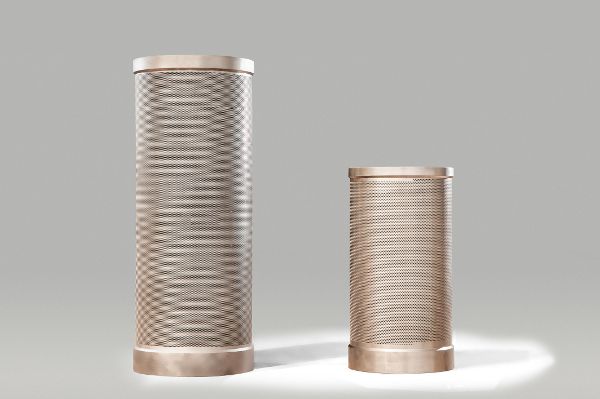

Exceptional filtration up to 0.2mm.
It has a triple fuction: filtration/shredder/homogenisation.
With this equipment it’s possible to work different kinds of compound with:
- Recycling material from waterproofing membrane
- Filler/other materials/CaCO3
• Capacity: up to 80cm/h
• Diathermic oil temperature : from 180°C to 200°C
• Electrical power installed: 30-40Kw
• Special design holes: from 55.000 to n° 75.000
